1. Product Overview:
The R3L is a next-generation of thermal imaging device of Longot R series with an integrated display, offering extended operation time, superior concealment, and a high-definition large-format screen. It delivers exceptional performance in challenging environments, penetrating thick smoke, dust, and complete darkness.
2. Key Applications:
Ideal for security surveillance, tactical searches, thermal targeting, outdoor adventures, high-end gaming, anti-theft systems, forest and fishery monitoring, and home defense.
3. Display & Imaging:

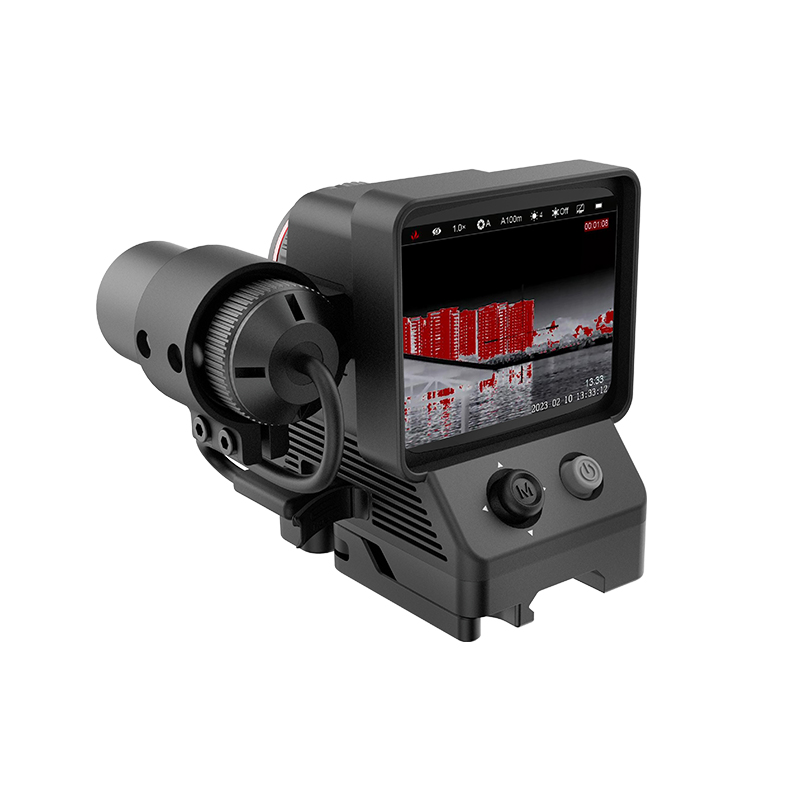

Featuring a 2.7-inch ultra-clear AMOLED screen with a wide field of view, this cheap thermal imager enables instant target detection. The advanced 12μm high-performance sensor chip ensures crisp, high-resolution thermal imaging.
4. Durability & Protection:
Designed with a robust waterproof construction to prevent moisture ingress in rainy conditions, making this ir heat camera reliable in extreme environments.
5. 1300m Laser Rangefinder Module
This thermal imager has thermal aiming function and can measure distance. The accuracy is 1m and the maximum distance is 1000m.
Infrared Picture Display:
Model |
R3L |
Sensor Specifications |
|
Type |
Non-refrigerated vanadium oxide |
Sensor Resolution, pixels |
384*288 |
Pixel Pitch, µm |
12 |
NEDT, mK |
≤40 |
Frame Rate, Hz |
50 |
Optical Specifications |
|
Objective Lens, mm |
25 |
Field of View |
10.5°*7.9° |
E-zoom, x |
×1、×2、×3、×4 |
Detection Distance, m |
1300 |
Display Specifications |
|
Display Size/Type |
2.7"/AMOLED |
Resolution, pixels |
800*600 |
Battery Powered |
|
Battery type/Capacity/Output voltage |
18500/1500mAh/3.7v |
Operation Time(22°), h |
≤5 |
External Interface Power Supply |
5V(Type-C) |
Physical Specifications |
|
Measuring Distance, m |
10-1000 |
Degree of Protection |
IP67 |
Memory |
32GB |
Operating Temperature Range, ℃ |
-25 - +50 |
Weight(not include battery) |
<410g |
Size, mm |
72*89*92 |
Special Feature |
WIFI |
Sensor Element Type |
CMOS |
Wavelength Range |
8-14 µm |
Memory Card Type |
SD |
Image Stabilization |
Yes |
Photograph |
Yes |
Video |
Yes |
MegaPixel |
12 MP |
Special Feature |
WIFI |
